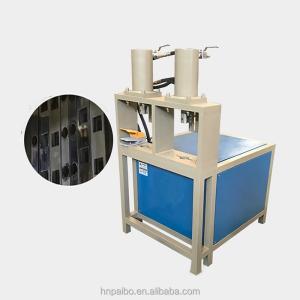

High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines

Name: High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines
Brand: PAIBO
Price: 1 USD

China High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines factory

Condition : New

Material / Metal Processed : Stainless steel, Carbon steel, Aluminium alloy, ALLOY, Aluminum

Cutting Thickness (mm) : 3

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Marketing Type : New Product 2020

Warranty of core components : 5 years

Core Components : Engine, Gear

Automation : Automatic

Place of Origin : China

Brand Name : PAIBO

Voltage : 380v/220v

Weight (KG) : 850

Key Selling Points : Competitive Price, High Productivity

Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works

Warranty : 4 years

Showroom Location : Canada, United States, Russia, Spain, South Korea

Application : Pipe Right Angle Cutting Punching Machines

Cutting material : Stainless Steel Carbon Steel

Type : High Productivity Pipe Right Angle Cutting Punching Machines

Machine Type : Punching Machine

Punching Speed : 70-120 Times/Min

Usage : Tube Pipe Punching Cutting

Motor Power : 7.5kw or Customized

Model Number : High Productivity Pipe Right Angle Cutting Punching Machines

Supply Ability : 60 Set/Sets per Month

Price : negotiable

MOQ : 1

Packaging Details : Film package

Delivery Time : 35

mob : 0086-17398977463

contact : sale@paibomac.com

tel. : 0086-17398977463

Contact Now

Product Description

a. The human-machine interface display, Touch Screen settings, NC control system, precise servo motor positioning, module storage memory function.

b. Structure:Steel plate welded structure
c. Mould replacement: change the die easily without adjusting the dies to reduce the mould damage rate and pipe fittings rejection rate due to the dies setting error. Skilled workers can change the mould within 10 minutes.
d. Punching Category: 1.single hole punching; 2.double hole punching; 3.Isometric hole punching; 4. none- Isometric hole punching; rotary punching.
e. Hydraulic and Servo System:

High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines

1. Step-less operation adjustment, hydraulic loops designed with zero load, combined with extremely low frequency oil pump motor, effectively reduced noise, increased motor efficiency and service duration.
2. When the oil cylinder is moving downward, the machine is designed with hydraulic difference driving loops rated at high or low RPM .it is also featured with high speed downward moving, low speed processing and hi-speed position resume .it is available to increase the formation stability of work pieces during puncturing .in addition to increasing the activation speed, it can effectively reduce HP load to save electrical energy.
3. The electrical control system is designed with the human machine interface, range adjustment use digital scale, setting low speed position, floor level position, and operation precise and easy.
4. Cylinder stroke 130mm (can be set), throat depth 300mm,available for forward and backward 150mm moving accessibility. Designed with the Italy-made digital scale with high precision.

High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines

Machine Parameters:

1	Model		10--60 Ton
2	Punching thickness		Τ0.5~T11mm
3	Hole	round pipe	Φ16~Φ120 mm
		Square tube	20×20~150×150 mm
		rectangle pipe	15×30~60×150 mm
		Angle iron	30×30~75×75mm
		channel iron	25×50~60×120mm
4	Hole distance		CNC control
5	Punching speed		70-120 Times/Min
6	Longest distance between holes		CNC control
7	Standard length		customized
8	Main Motor Power		7.5Kw
9	Engineering Motion Classification		1.Single puncturing operation
			2.Irregular interval puncturing
			3.Regular interval puncturing
			4.360°rotating puncturing
10	TFT human machine interface		Human machine interface
11	control system		touch controllable display setting ,Chinese and English exchange
12	Memory Function		can be stored and memorized 0-99 groups processing mode
13	Overall Dimension		6300×1500×1700mm
14	Weight		3000Kg

High Productivity Hydraulic Tube 90 Degree Notching Pipe Right Angle Cutting Punching Machines

FAQ

What information do you want to know if i want to get a quotation?

a). The model/size of your products.
b). The application for your products.
c). Special package methods if you needs.
d). Raw material.

Do you inspect the finished products?

Yes. Each step of products will be carried out inspection by QC department until shipping

What advantages do you have?

(1) Punctual: Have your orders met with the latest delivery?

We are a manufacturer with so many advanced and new machines. It ensures we have the ability to carry out the production schedual for punctual delivery.

(2) 20years production experience. We have over 20 years experience in this industry.

That means we can preview the problems for the orders and production. Therefore, it will make sure to deduce the risk of bad situation to happen.

(3) Point to point service.

There is two sales departments who will serve you from inquiry to products shipped out. During the process, you just need to discuss with him for all the problems and the way sames much times.
